@title[Efficient Video Processing]

Piping the Parallelism out of Python

Efficient Video Processing

R S Nikhil Krishna @rsnk96
Lokesh Kumar T @tlokeshkumar
Follow the presentation @ https://goo.gl/KM2GoR

---

@transition[none] @snap[north]

Why Bother?

@snapend

• 2009: Youtube announces 1080p, 30 fps support
• 2015: Youtube announces 8k (4320p), 60 fps support
• 2016: AMD announces 16k(8640p), 240 fps VR support

AMD announces 16k support: https://www.tweaktown.com/news/53163/amd-radeon-pro-graphics-card-powers-16k-display-15-360-8640/index.html

+++ @transition[fade]

Why Bother?

\begin{align} \small{\text{Demand}} & = \tiny{\frac{(7680 \times 4320) \times 120 \ \text{[2018]} }{(1280 \times 720) \times 60 \ \text{[2009]} }} & = & 72\text{x} \\ \small{\text{Supply}} \tiny{\textrm{(HDD ~100 USD)}} & = \tiny{\frac{3 \ \textrm{TB} \quad \text{[2018]} }{500 \ \textrm{GB} \quad \text{[2009]} } } & = & 6\text{x} \\ \small{\text{Supply}} \tiny{\textrm{(CPU ~300 USD)}} & = \tiny{\frac{3.7\ \textrm{GHz} \times 16\ \textrm{Threads}\ \text{[2018]} }{2.9 \ \textrm{Ghz} \times 8\ \textrm{Threads} \ \text{[2009]} }} & = & 2.55\text{x} \\ \end{align}

Note:

• This is not the full story, codecs compress this

+++

Note:

• Programmer's dillemma

---

@title[Computer Vision]

Computer Vision

+++?image=https://d.ibtimes.co.uk/en/full/1469739/vision-age-ultron.jpg @ul

• @fa[desktop white] @color[white](Vision ?)
• @fa[times fa-3x white] @ulend

+++

Note:

• First thought when video processing comes to your head: FFmpeg

+++ @title[FFmpeg]

FFmpeg

+++

FFmpeg

• The Cross-Platform Multimedia Swiss-Knife

• Used by VLC, Youtube (controversial), etc

• Efficiently uses your hardware




• Supports most modern day codecs

Note:

• Youtube controversy: FFmpeg has GPL license, so you don't need to openly claim that you use it. contributors to FFmpeg made a bug in the processing pipeline, not a fatal bug. Same bug shows up in FFmpeg too

+++

Trouble in Paradise (@fa[times] Biryani)

• Adding a filter to ffmpeg is non-trivial
  • Lot of callback functions to define in C:

    init(), uninit(), query_formats(), config_props(), filter_frame()

• @size[1](What if we want to do more than just adding a filter?)

Source: https://github.com/FFmpeg/FFmpeg/blob/master/doc/writing_filters.txt

Note:

• Any industry dealing in just giving clients videos ==> more than basic filters.
• ffmpeg accessible through terminal only==> pipe the data from numpy to ffmpeg from within Python

+++

Pythonistas, Awake!!!!

@ul * Using Python, there's no limitation on the type of operations we can perform on videos * Commonly used: OpenCV, Scikit-Image, PIL, etc @ulend


Note:

• Best Part: No need to write it in C
• Next Slide: Codecs intro

+++

Some Modern Codecs



https://github.com/Netflix/vmaf

+++?image=https://preview.ibb.co/dhLF3e/18_10_04_1020_477.png

And OpenCV can encode NONE of them

Note:

• with its default backend

+++?image=https://preview.ibb.co/k7JHkK/h264.png

@color[white](Which means a nice H265 frame)

+++ @transition[none]

@color[white](Will end up looking like this instead)

+++

The Middle Ground

@ul * Use Python for all the processing * Pipe the numpy arrays arrays into FFmpeg to encode it using modern codecs @ulend


+++

Piping Numpy arrays into FFmpeg

Setting up the pipe for a 460x360 input in the format BGR,BGR,BGR

command = [ 'ffmpeg',
          '-f', 'rawvideo', '-vcodec','rawvideo',
          '-s', '420x360', # size of one frame
          '-pix_fmt', 'bgr24',
          '-r', '24', # frames per second
          '-i', '-', # The imput comes from a pipe
          '-an', # Tells FFMPEG not to expect any audio
          '-vcodec', 'libx265',
          'my_output_videofile.mp4' ]

pipe = sp.Popen( command, stdin=sp.PIPE, stderr=sp.PIPE)

+++

Piping Numpy arrays into FFmpeg

Now, to write frames,

pipe = sp.Popen(command, stdin=sp.PIPE,stderr=sp.PIPE)
while (cap.isOpened()):
  ret, frame = cap.read()
  # Do some stuff
  pipe.proc.stdin.write( my_image_array.tostring() )

Read Zulko's (MoviePy) blog for more Source: http://zulko.github.io/blog/2013/09/27/read-and-write-video-frames-in-python-using-ffmpeg/

Note:

• sp is subprocess lib
• What these 3 - 4 lines do: Let you access SotA codecs from within Python

+++

The Problem

---

@title[Parallelism in Video Processing]

Parallelism in Video Processing

+++

+++?image=https://media.giphy.com/media/pzAU8uEKFcRAsTjdKQ/giphy.gif @ul

• @fa[times fa-4x black] @ulend

Note:

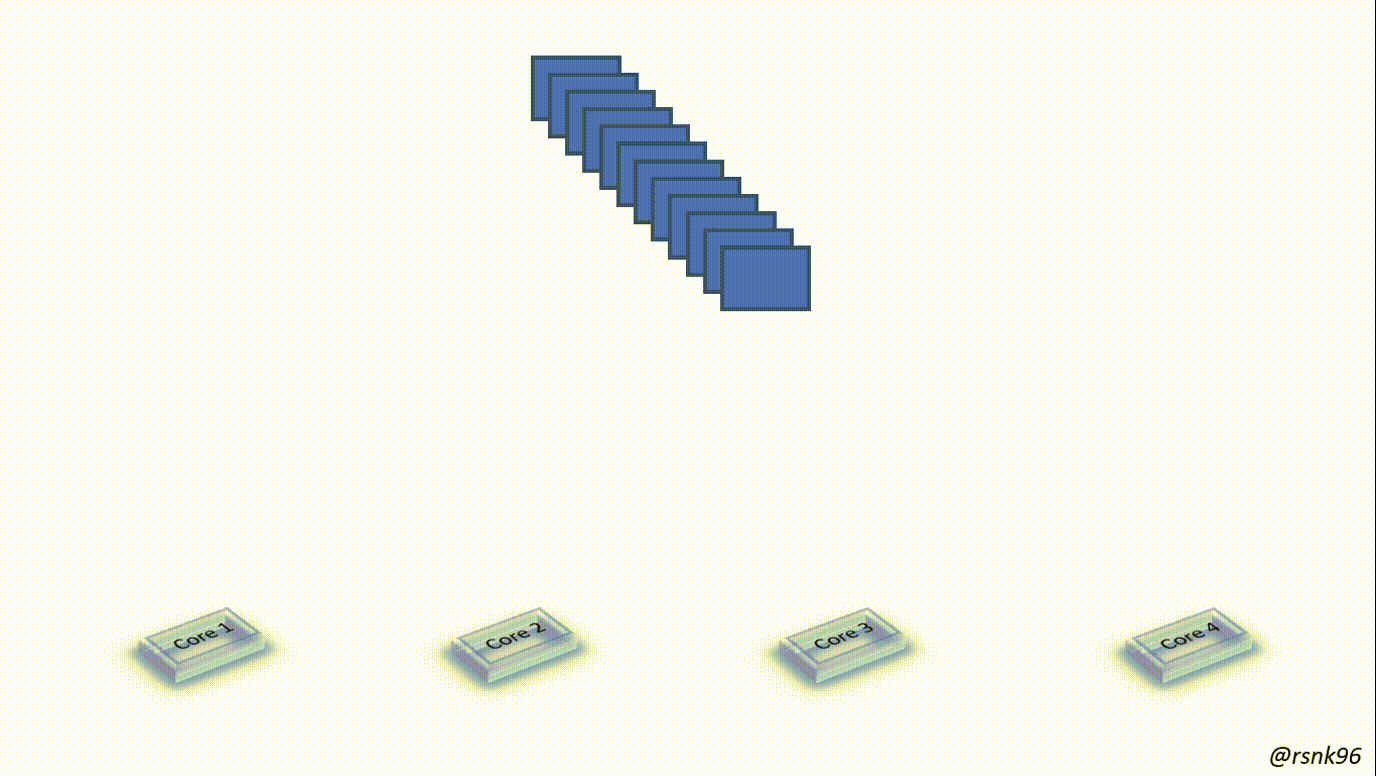

• FFmpeg speeds up processing by parallelizing the processing of each frame, rather than parallelizing across frames. But parallelizing across frames is a much more fundamental approach, if you think about it, you handle each frame independently.
• Video compression is generally inter-frame, so we store some key frames and note how successive frames differ from the previous ones.

+++?image=https://media.giphy.com/media/2lh9grOpTCXnaP3zgw/giphy.gif

Note:

• take 10k frames as base

+++

CV - The normal way

  def process_video():
    cap = cv2.VideoCapture("input_file.mp4")
    out = cv2.VideoWriter("output_file.avi", ...)
    while (cap.isOpened()):
      ret, frame = cap.read()
      # ... DO SOME STUFF TO frame... #
      out.write(frame)

  process_video()

+++

CV - The multiprocessing way

  def process_video(group_number):
    cap = cv2.VideoCapture("input_file.mp4")
    cap.set(cv2.CAP_PROP_POS_FRAMES, frame_jump * group_number)
    proc_frames = 0
    out = cv2.VideoWriter("output_{}.avi".format(group_number), ...)
    while proc_frames < frame_jump:
      ret, frame = cap.read()
      # ... DO SOME STUFF TO frame ... #
      proc_frames += 1
      out.write(frame)
    return None

  import multiprocessing as mp
  num_processes = mp.cpu_count()
  num_frames = cv2.VideoCapture("input_file.mp4").get(cv2.CAP_PROP_FRAME_COUNT)
  frame_jump =  num_frames // num_processes

  p = mp.Pool(num_processes)
  p.map(process_video, range(num_processes))

  with open("temp_files.txt", "w") as f:
    for t in ["output_{}.avi".format(i) for i in range(num_processes)]:
      f.write("file {} \n".format(t))
  ffmpeg_command = "ffmpeg -f concat -safe 0 -i temp_files.txt -vcodec copy"
  sp.Popen(ffmpeg_command, shell=True).wait()

@[12-13](Number of parallel sub-processes) @[14-15](Number of frames for each sub-process to process) @[1-10](We modify the original function a bit) @[1,3-6](The important changes) @[17-18](And now we parallelize the processing of the video) @[20-24](Merge the videos)

+++ The # ... DO SOME STUFF ... :



Note:

• Even for a small 640p video(pic), we can see significant speed-ups
• Speed up of ~2.3x on 2 core machine with just 10 extra lines of code
• Also note that in this method, we've completely stayed within Python, without coming out unlike piping into FFmpeg

+++

+++

@color[white](Le crowd)

---?image=https://ksassets.timeincuk.net/wp/uploads/sites/54/2017/12/RvxjvHGLJgCCi7PkDEmMWP-970-80-920x517.jpg @transition[none] @title[GPU] @snap[north-west headline] @css[heading](Parallelism in Video Processing) @snapend

@snap[south-east] @color[white](GPU Parallelism) @snapend

@snapend

+++

Time-vs-Space

Whatever we've seen up till now is inter-frame parallelization

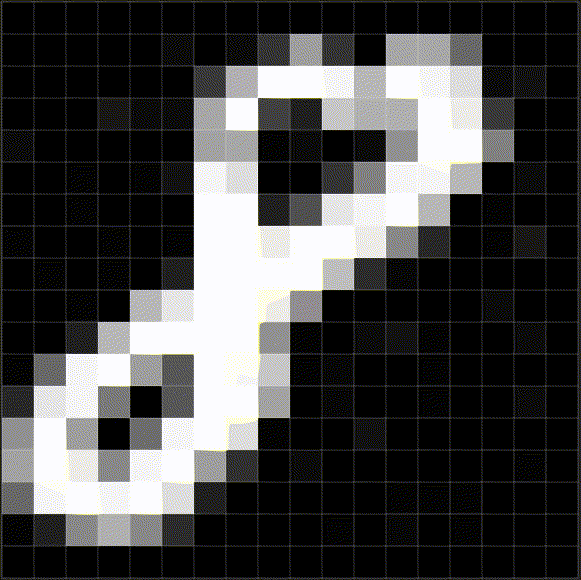

+++?image=https://image.ibb.co/dZgSYe/18_10_04_546_519.png&size=auto 70% @transition[none] @snap[north] Intra-Frame Parallelization @snapend

+++

Hidden Problems of parallelizing your video pipeline

@ul

• Reassembly of the video fragments in the correct order
• Assumption: Cores are powerful enough to process entire frames by themselves @ulend

+++

Program flow

+++

Cuda Kernel

@cuda.jit
def image_conv(ip_img, kernel, op_img, channels, w, h):
    r, c = cuda.grid(2) # Finding the global position of the thread

    kernel_c = cuda.const.array_like(conv_window)

    for b in range(BATCH):
        # Do some stuff

@[1](Decorator to make python function into a CUDA Kernel) @[2](Function Header) @[3](Find the global position of the thread) @[5](Push the kernel to constant memory for faster read and write access) @[7](Iterate over the batch of images) @[8](Perform per frame processing ops)

+++

GPU Memory Systems

@ul

• CPU Mem Access Speeds: RAM < Cache < Register
• GPU Mem Access Speeds: Global < Constant < Shared @ulend

+++

Shared Memory Optimizations

@ul

• On chip memory: Much faster access rates than global memory
• Latency: ~ 1/100x (uncached global memory latency)
• Load the part of input image used by a block into shared memory
• Read from shared memory for further computation in the kernel @ulend

+++

Using FFT for Image Convolution

Source: http://www.khshim.com/archives/681

+++

Streaming asynchronous streams

Source: https://devblogs.nvidia.com/how-overlap-data-transfers-cuda-cc/

+++

Streaming asynchronous streams

@ul

• Implicit data transfers are blocking or synchronous transfers
• Kernel Launches are asynchronous
• Idea: Overlap kernel execution with data transfers each running in different streams. @ulend

+++

Streaming asynchronous streams

for i in range(n_streams):
    streams.append(cuda.stream())

ip_img = cuda.device_array((n_streams, BATCH, rows, cols, 3))
op_img = cuda.device_array((n_streams, BATCH, rows, cols, 3))

for i, idx in enumerate(streams):
    ip_img[idx] = cuda.to_device(img_batch, stream=i)
    kernel[blockspergrid, threadsperblock, i](ip_img[idx], op_img[idx], ...)
    op_img_h = op_img[idx].copy_to_host(stream=i)

@[1-2](Creating the streams required for processing) @[4-5](One way of alloting your input and output data arrays in GPU) @[7](Iterate over the streams) @[8-10](Do the require computation with stream=i)

+++ @title[Results - GPU]

---

@title[Putting it all together]

Putting it all together

+++

+++

More detailed review

+++

Python Pipers

@ul

• FFmpeg - latest codecs, best compression methods with the best quality
• Multiprocessing the ndarrays - lets us do it really fast
  • How to avoid having to write to hard disk?
• Figuring out how to get the best of both worlds --> Try it out yourselves! You can check your results here @ulend

+++ @title[Results]

+++?image=http://quotesideas.com/wp-content/uploads/2015/10/mMaddc0.jpg

+++

@ul

• Pipe into memory if I/O is the bottleneck and you have fast memory access rates
• No problem in piping into I/O directly if you have an NvME SSD or any other fast I/O device @ulend

---

Thank You!
